Cim 10

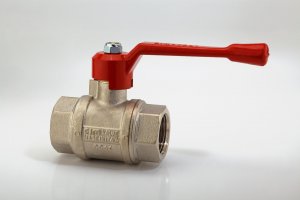

Fullway Ball Valve
This article was made in compliance with the quality management requirements of standard ISO 9001:2008.
All articles are tested according to the standard EN 12266-1:2003.
It can be used in a wide variety of sectors: heating, air conditioning, water, sanitary systems, pneumatic systems, oil
pipelines, gasoline networks, saturated steam and generally with any non corrosive liquid.
It is guaranteed for 5 years.
It is made of a brass alloy that complies with standard EN 12165-CW617N-M.
Nominal Pressure:
PN 100 (1/4" ÷ 1/2"); PN 64 (3/4" ÷ 1"); PN 50 (1"1/4); PN 40 (1"1/2 ÷ 2"); PN 25 (2"1/2 ÷ 4")
Operating temperature: -20 ÷ 150°C
